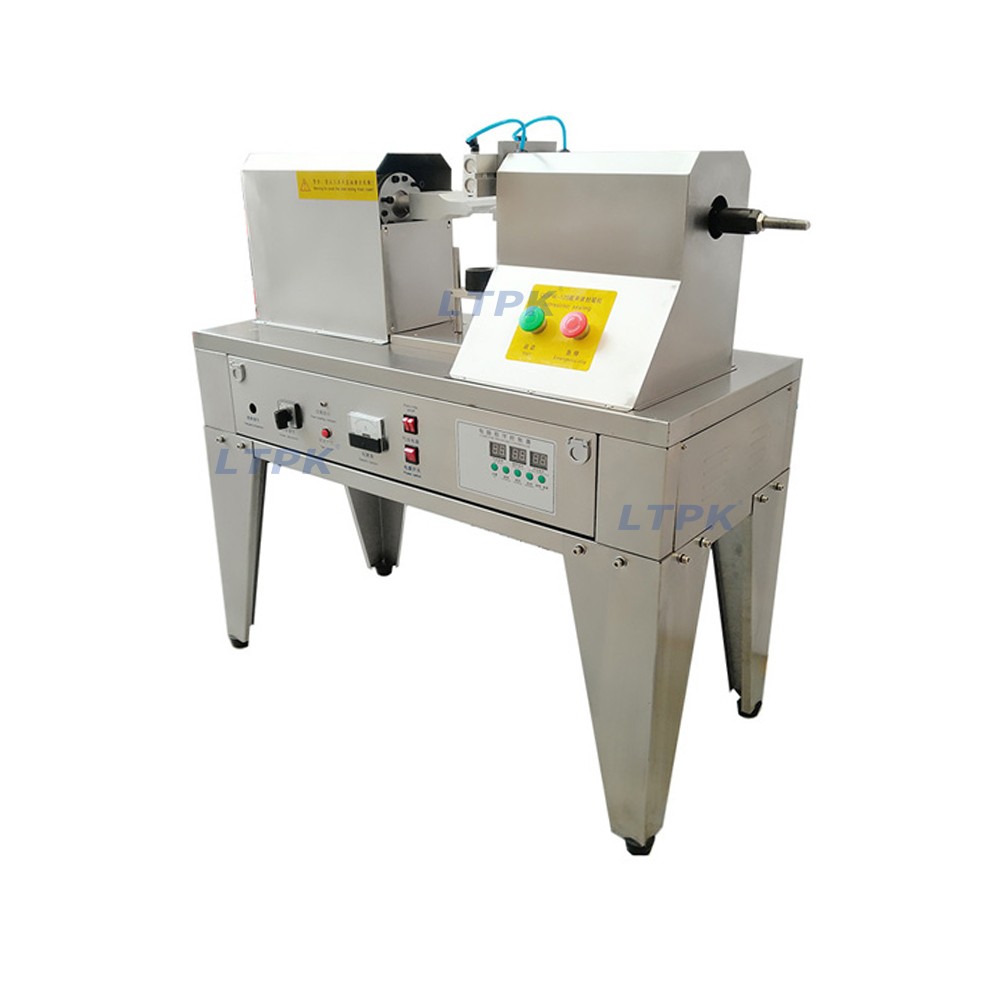

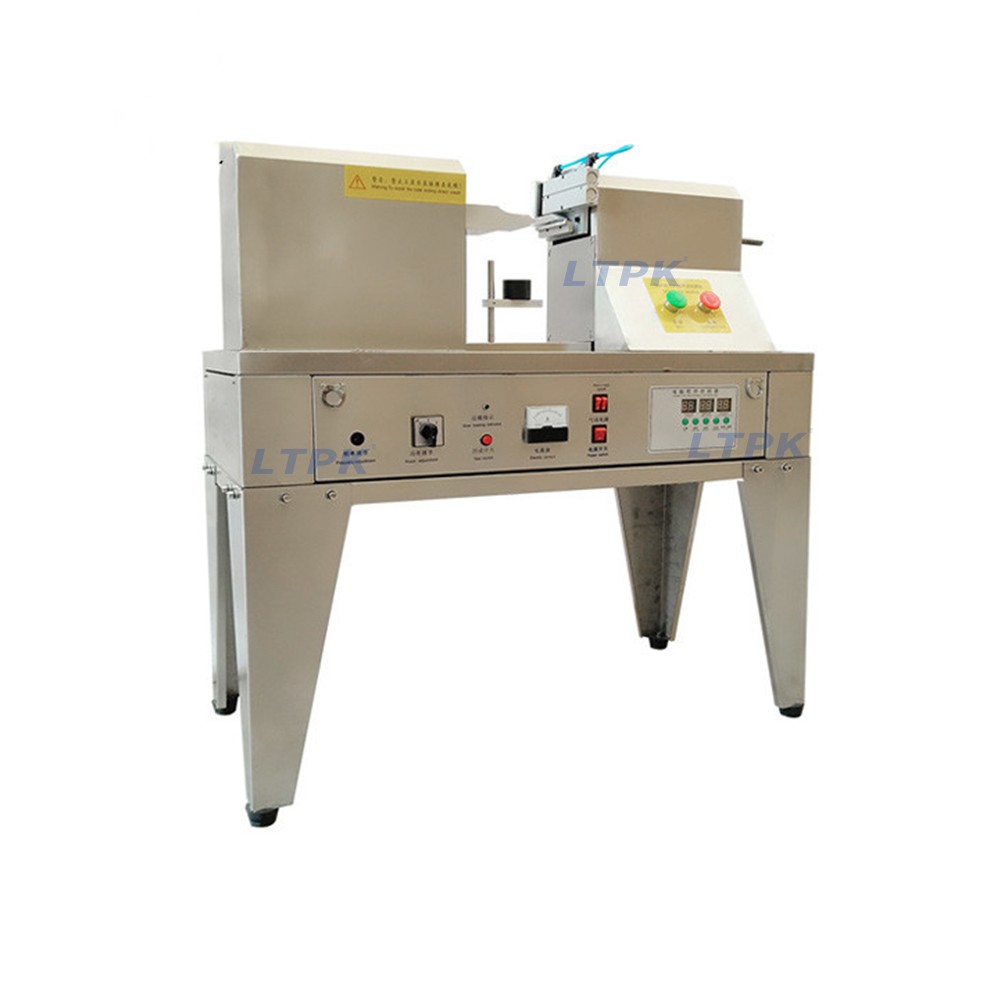

QDFM -125 Ultrasonic Plastic Tube Sealing Machine

The QDFM-125 ultrasonic hose sealing machine adopts a Taiwanese core circuit and uses ultrasonic principles to seal the tail of hoses and composite pipes.

EMAIL

Description:



The QDFM-125 ultrasonic hose sealing machine adopts a Taiwanese core circuit and uses ultrasonic principles to seal the tail of hoses and composite pipes.

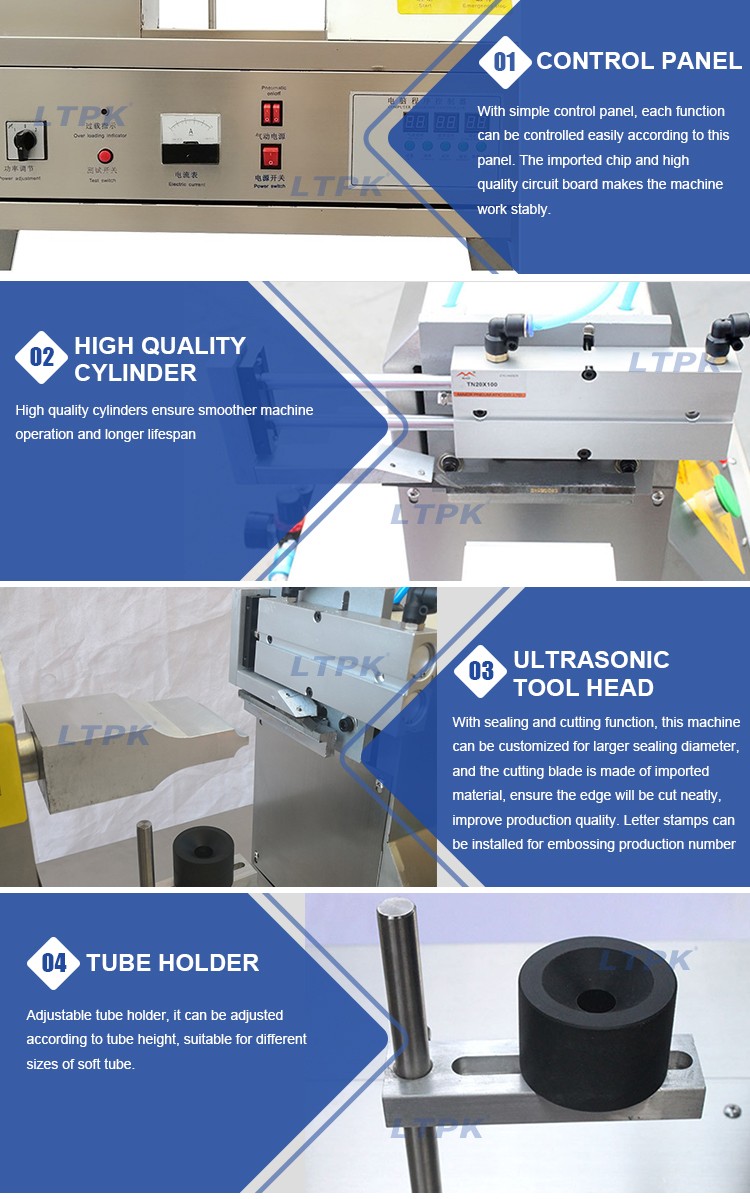

It has good working stability and high efficiency. With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance





Application:

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc



Parameter:

Model

QDFM-125

Environmental temperature

0°C +35°C

Environment humidity

relative humidity below 85%

Working Height

0-300mm(Can be Customized)

Air pressure

0.2-0.6MPa

Maximum output power

1250W

Tube height

50~180mm ( Can be Customized )

Tube diameter

F5~F50 mm ( Can be Customized )

Sealing speed

About 20 pieces/min

Working table

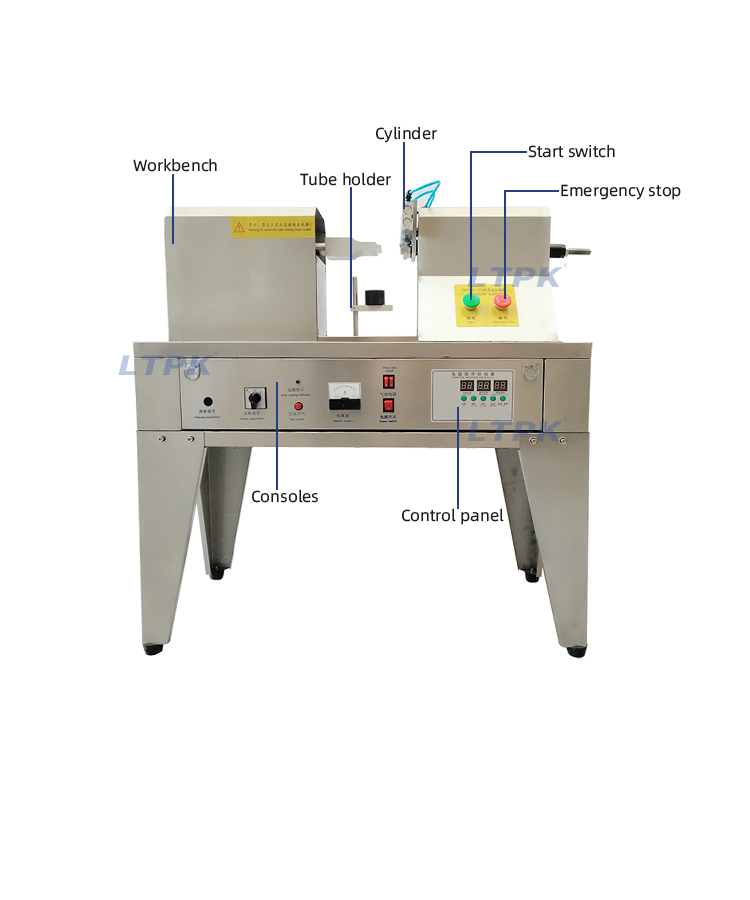

vertical/horizontal adjustable worktable

Ultrasonic working frequency

20kHZ

Size

110*65*53cm

Weight

100kg
