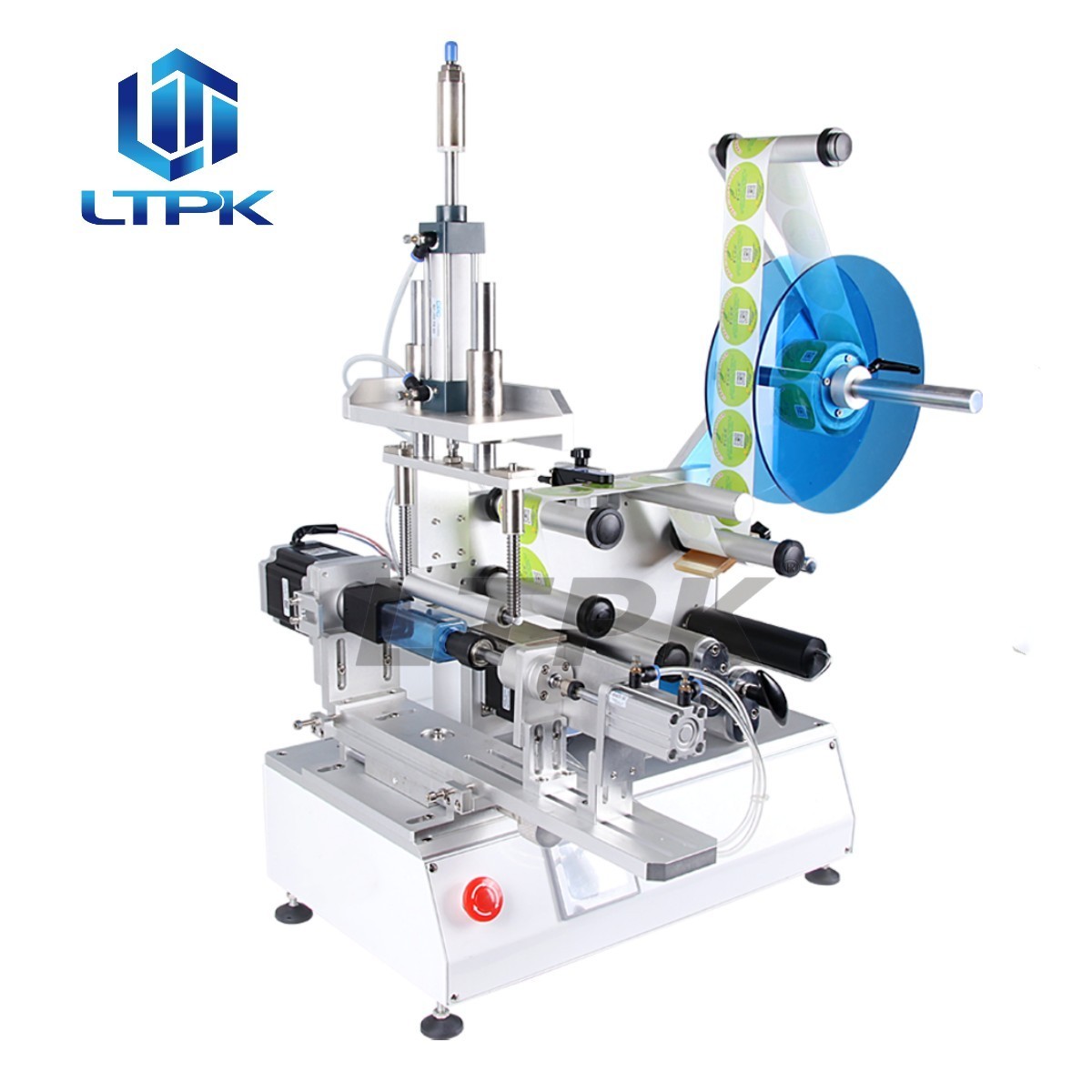

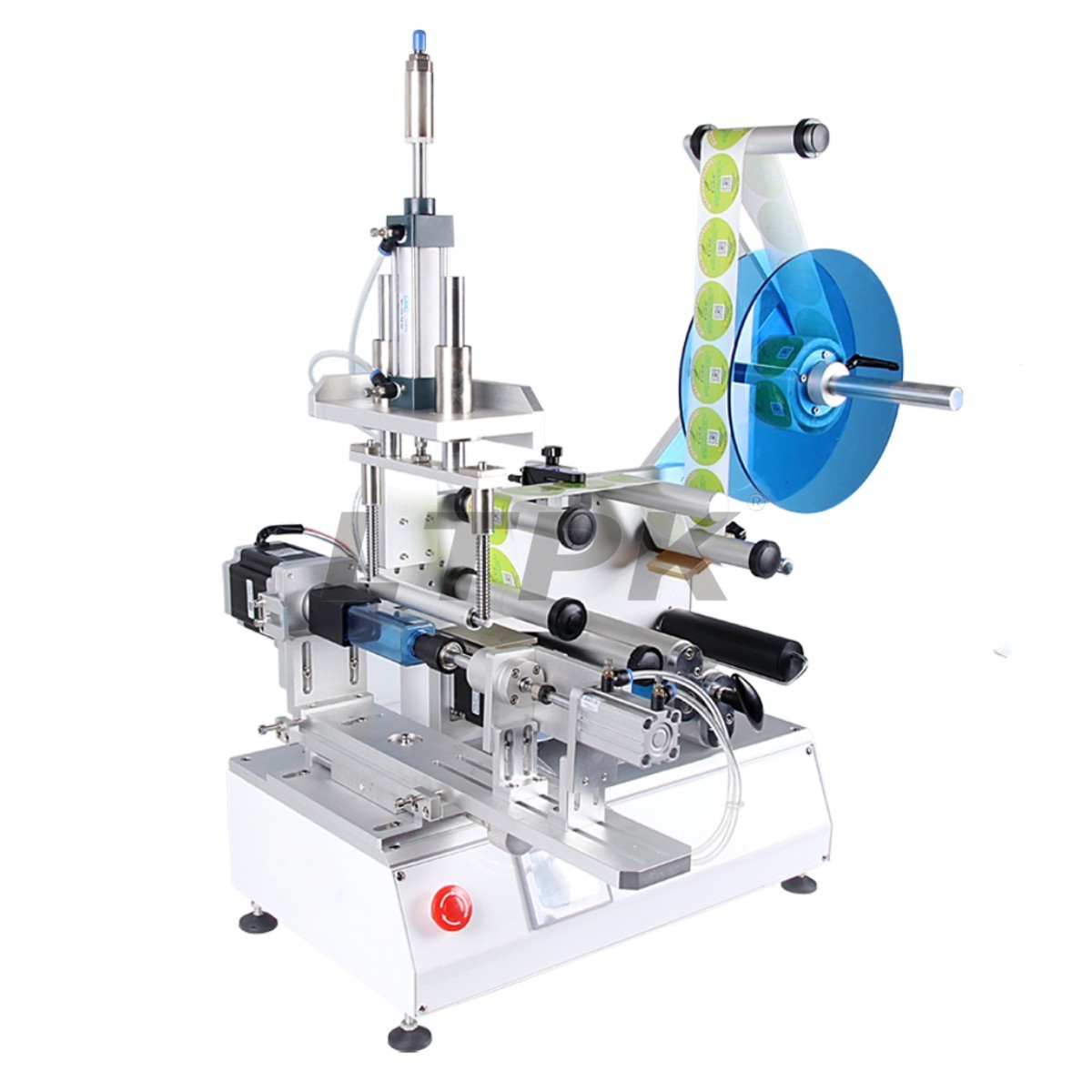

LTPK LT-802 Semi automatic flat bottle labeling machine

Description：

The rolling labeling method is applied to realize the labeling of various workpieces on the plane, such as flat bottle, square bottle, hexagonal bottle, prismatic bottle and so on.Changing the marking mechanism can be applied to the labeling of uneven surfaces, such as prismatic surfaces and circular surface labeling.
Application:
Applicable labels: self- adhesive labels, transparent labels, electronic supervision codes,barcodes, etc.

Applicable products:
Products that require labeling on flat, curved or other surfaces. Application industry: widely used in food, toys, daily chemicals, electronics, medicine,hardware, plastics, printing and other industries. Application examples: lighters, muti-angle bottles, square bottles, fat bottles, etc.

Technical Parameters

Labeling accuracy ±0.5mm

Labeling speed 15-30 pieces/minute

Applicable product size L: 20mm ~ 200mm; W 20mm ~ 180mm; thickness: 5mm ~ 130mm

Applicable label size L: 15mm ~ 300mm;W(bottom paper width): 15mm ~ 150mm

Machine size About 830mm x 515mm x 840mm (L*W*H)

Applicable power supply 220V/50HZ

Machine weight About 57kg

Applicable label inner diameter φ76mm

Applicable label outer diameter φ300mm
