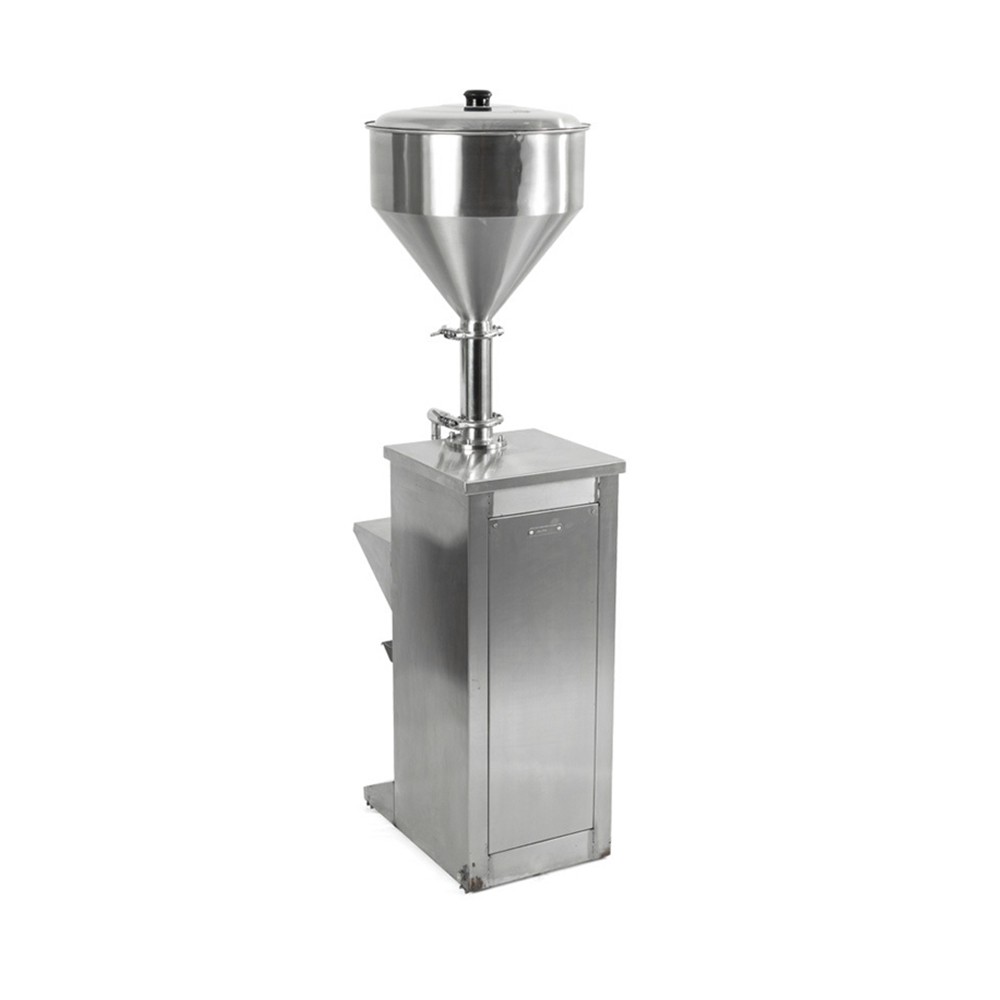

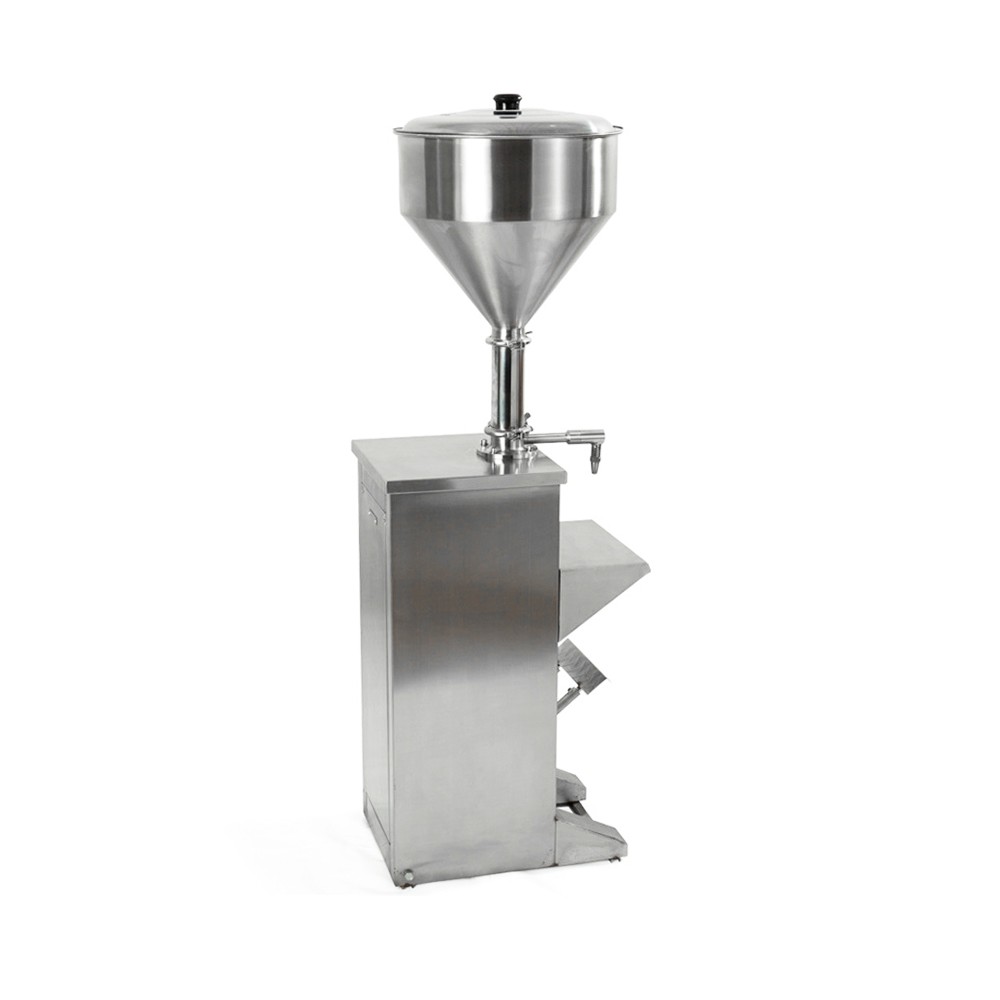

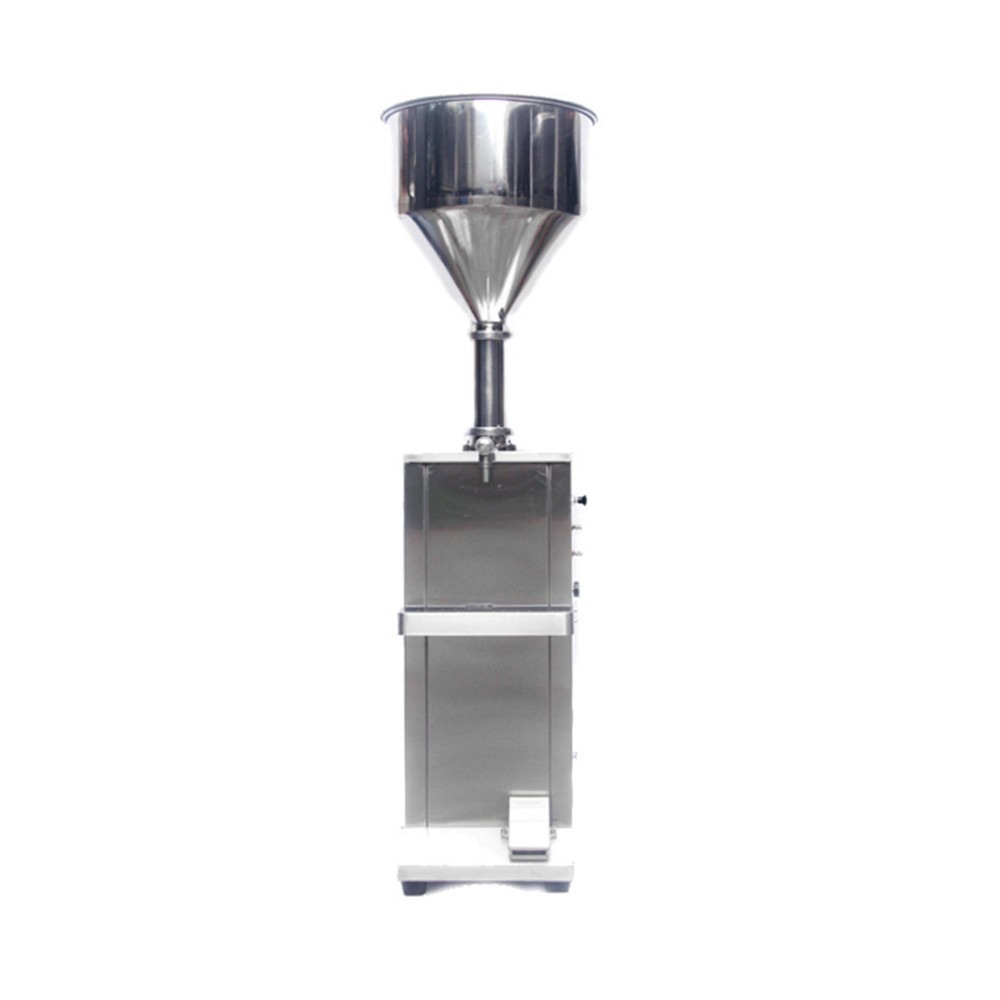

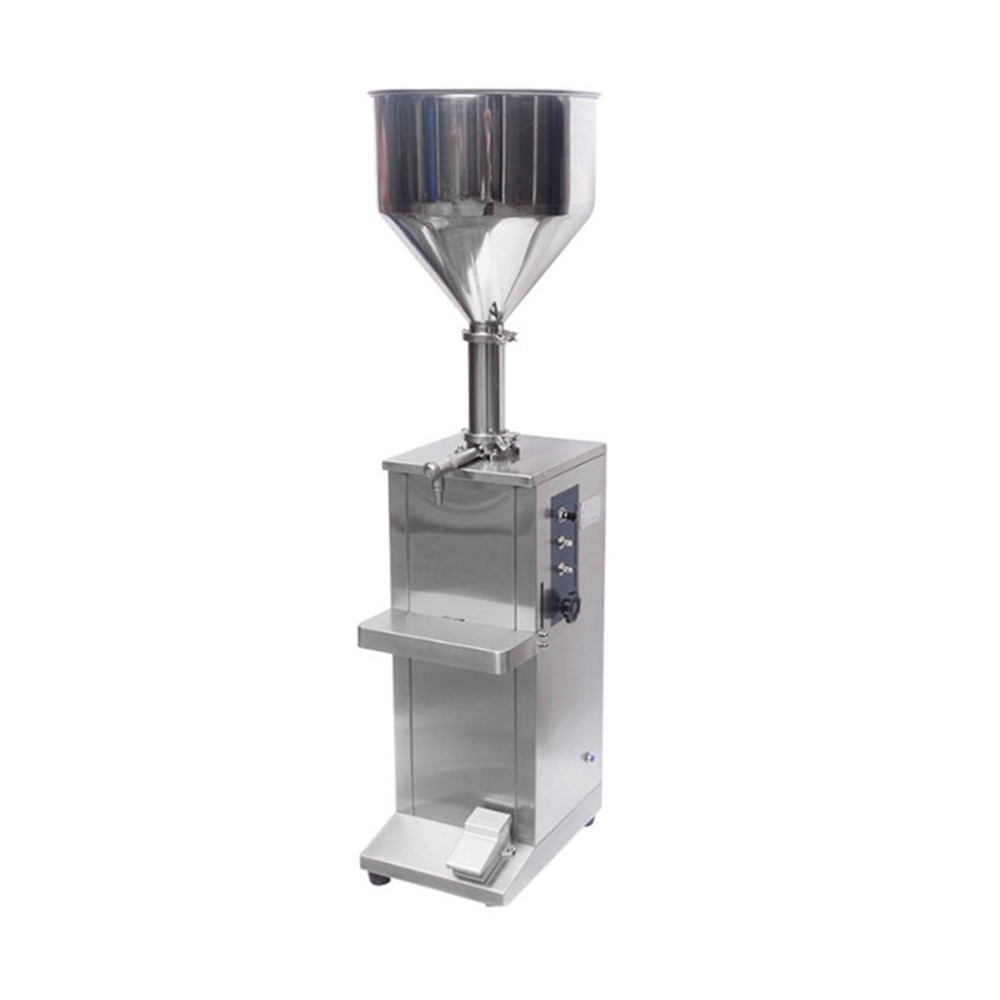

Vertical Gel Filling Machine for High Viscous Fluids

Introduction:

The pedal-type paste-liquid dual-purpose filling machine adopts a single-head plunger which is a quantitative filling device.

The machine realizes quantitative supply of materials by setting the distance of the plunger movement, and at the same time,

makes arbitrary adjustment according to different filling amounts within the measuring range.This machine has simple operation and quantitative discharge.

It has the characteristics of accurate measurement, simple structure, etc. It is made of stainless steel and meets the hygiene requirements of food and medicine production.

Application:

This series is a dual purpose filling equipment for liquids, creams, and sauces with particles in industries such as daily chemical, food, and processing.

It is suitable for filling various types of creams, liquids, creams, slurries, and paste materials

Specification:

Model: GFA-100/GFA-300/GFA-500/GFA-1000

Filling range: 10-100ml /30-300ml /50-500ml /100-1000ml

Filling accuracy: ±1%

Filling speed : 1-25pcs/min

With gas consumption : ≥0.1m³/min

Equipped with air pressure : 0.4-0.6Mpa

Size:  500*370*1580mm

Weight: 50kg
